| Brand Name : | PTFE Tubes |
| Model Number : | 9002-84-0 |
| Certification : | ASTM、EN ISO、JIS |
| Payment Terms : | L/C, D/A, D/P, T/T, |
| Supply Ability : | 2-3 Weeks |
| Delivery Time : | 2-3 Weeks |
Overview:

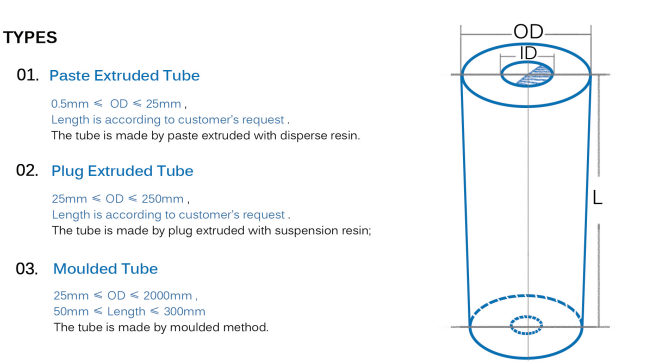

PTFE tubes can be manufactured via three distinct processes. Tubes
with an outer diameter of 0.5mm - 25mm and a wall thickness of
0.1mm - 2.5mm are produced by pushing imported PTFE dispersion
resin paste. Tubes with an outer diameter of 25mm - 250mm and a
wall thickness of 1.5mm - 8.0mm are made by extruding PTFE
suspension resin using a plunger. Tubes with an outer diameter of
25mm - 2000mm and a wall thickness of 0.15mm - 500mm are processed
through molding. PTFE tubes exhibit excellent chemical corrosion
resistance, non-stick properties, wear resistance, and electrical
insulation. Under no-load conditions, they can operate stably
within the temperature range of -180°C to +260°C.
Key Features:

Applications:
PTFE tubes find wide applications in industries such as chemical
engineering, electronics, food processing, and pharmaceuticals.
They are suitable for manufacturing parts that require high
chemical resistance, electrical insulation, and non-stick
properties, such as anti-corrosion linings in pipelines, insulating
sleeves for wires and cables, and anti-stick components in food
processing equipment.
Quality Assurance:
Our PTFE tubes undergo stringent quality control procedures. Each
batch of tubes is inspected and tested in terms of physical
properties, chemical resistance, and dimensional accuracy to ensure
compliance with high-quality standards. We are dedicated to
providing customers with reliable and high-performance PTFE tube
products.
Specification:

Properties:

|
